Application Overview
★ Materials that cannot withstand high temperatures.
★ Materials that are prone to oxidation.
★ Materials that are not allowed to damage the crystal.
★ Recycle materials that have been removed from moisture during drying.
★ Strong stimulation of toxic materials.
Equipment characteristics

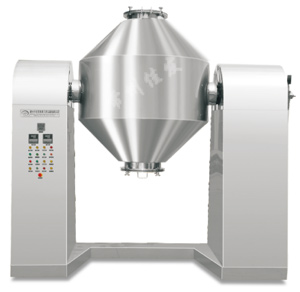

★ This machine transports powder or granular materials through vacuum or manually feeds them into a double cone container. As the container continues to rotate, the materials undergo complex impact movements in the container, achieving uniform mixing.
★ This machine saves energy, is easy to operate, has low labor intensity, and high work efficiency.
Project specifications | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4500 | |
Total capacity | L | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4500 |
Working volume | L | 50 | 175 | 250 | 375 | 500 | 750 | 1000 | 1500 | 2250 |
Heating area | m2 | 1.16 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 9.6 | 13.8 |
Speed | rpm | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 4 | 4 |
Power | Kw | 0.8 | 1.5 | 1.5 | 2 | 3 | 3 | 4 | 5.5 | 7.5 |
Slewing height | mm | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4150 |
Design pressure inside the tank | Mpa | -0.1~0.15 | ||||||||
Design pressure of interlayer | Mpa | 0.3 | ||||||||
Total weight | Kg | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 | 7500 |
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
