Application Overview

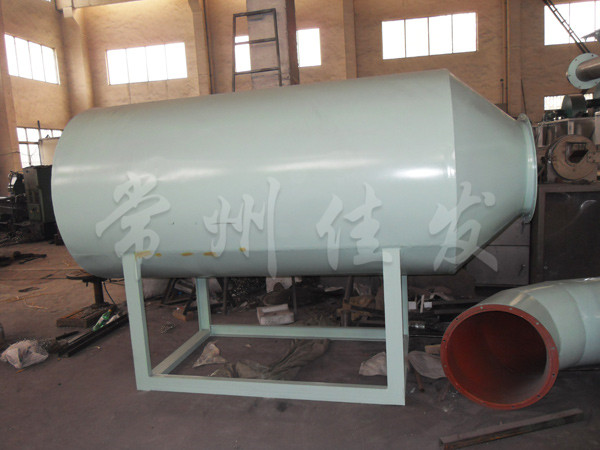

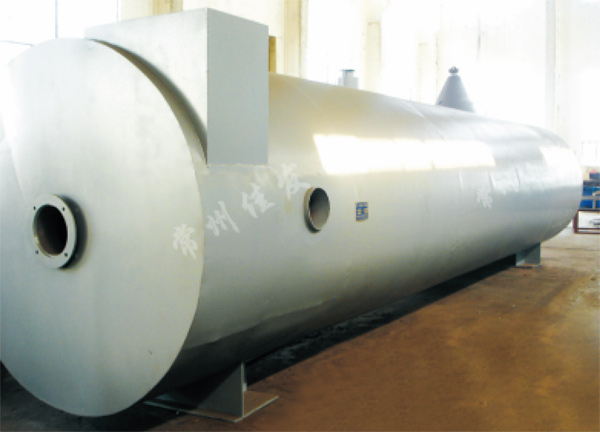

Our company's self-designed and manufactured RLY series horizontal metal body fuel oil indirect heating hot air furnace is a highly efficient hot air heating device that integrates combustion and heat exchange. The output hot air temperature can reach 300 degrees, and the flue gas and air go through their respective channels. Therefore, the air after heat exchange is clean hot air, which can be used in conjunction with various drying equipment.
Project specifications | Hot air temperature(℃) | Hot air volume(m3/h) | Heat Output(KJ/h) | Fuel consumption(Kg/h) |
RLY6.5 | 120-200 | 1640-2220 | 14-27 | 5-10 |
RLY12 | 120-250 | 2220-3500 | 24-50 | 8.5-18 |
RLY18 | 150-300 | 3200-6000 | 30-75 | 10-26 |
RLY40 | 150-300 | 5400-9000 | 80-170 | 28-55 |
RLY72 | 150-300 | 8000-17000 | 120-300 | 40-100 |
RLY120 | 150-300 | 12000-28000 | 175-500 | 60-170 |
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
