Application Overview
This equipment is widely used for spherical granulation in industries such as medicine, food, and chemical engineering. Especially in the pharmaceutical field, it is an effective tool for controlled release and sustained-release pellets in medicine, providing equipment support for the development of new varieties.
Equipment characteristics

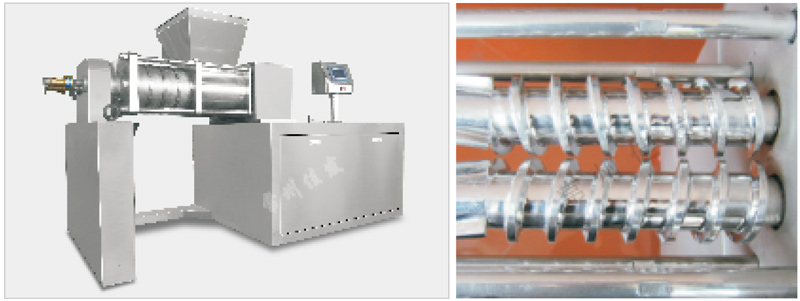

★ The feed hopper, screw feeder, extruder, and extruder head orifice plate are all easy to disassemble and clean.
★ The screw structure allows the material to be squeezed by the forward thrust of the rotating screw, resulting in uniform extrusion, high molding rate, and dense finished particles; Continuous operation, high production efficiency; Can simultaneously supply pellets for multiple rounding machines.
★ Provide screens with multiple pore sizes for easy adjustment to obtain extruded materials of different diameters.
★ Adopting variable frequency speed regulation, it can adjust the speed within a certain range to meet the different needs of different materials for speed. Real time adjustment of extrusion speed can achieve extrusion effect, making the variety selection range wider.
Outline Dimensional Drawing
Project specifications | Production(kg/h) | Pellet diameter(mm) | Installed power(kw) | Speed(rpm) |
60 | 60～80 | 0.8～3.5 | 3 | 0～100 |
100 | 80～100 | 0.8～3.5 | 7.5 | 0～100 |
150 | 100～150 | 0.8～3.5 | 11 | 0～80 |
200 | 150～200 | 0.8～3.5 | 18.5 | 0～60 |
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
